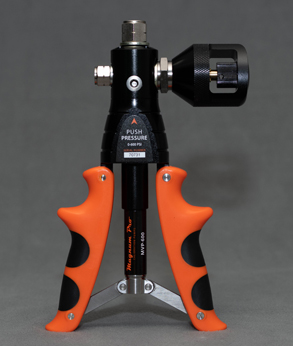

MVP-600 Pneumatic Calibration Hand Pump
Produces pneumatic pressure and vacuum to check calibration of gauges, switches, transmitters, and recorders. The contoured cushioned handles provide extra comfort while preventing the pump from sliding. The over-sized check valve provides smooth operation throughout the output range while the dual o-rings on all pistons ensure zero leakage. Patented Mash proof vent valve comes standard on all MVP-600s (No Needle Valve) and a non-oil based lubricant is used on all moving parts.

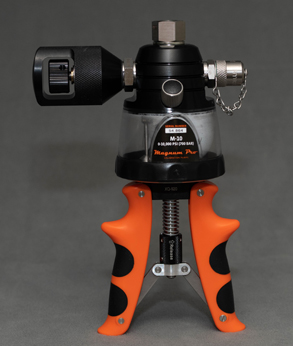

M-10 Hydraulic Calibration Hand Pump
Utilizes a fully adjustable stroke control to allow for quick priming, easy pumping, and fast pressure generation up to 10,000 psi (700 bar). The ergonomically engineered handles provide extra comfort, while the patented triple filtration system ensures pump operation in spite of dirty conditions. The shatterproof reservoir and stainless steel construction guarantee leak free operation. The pump has over-sized check valves to provide smooth controlled operation.
Magnum Low Pro Volume Pressure Chamber M-80
Capable of extremely high resolution (0.0001 psi) as it spans the range of near absolute vacuum to low pressures (30" Hg - 80 PSI). It's rugged outer housing and dual o-ring design ensures zero leakage. Not only is the M-80 bench mountable, but it’s relative light weight (3.5 lbs) makes it perfect for field use as well. Optional power drive supplied to rotate the vernier at a quicker pace in-order to speed up your calibrations.

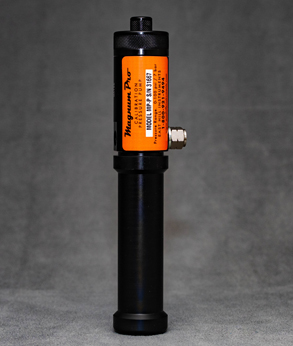

MP-P Pressure Calibration Pump
Features a Delrin® plastic handle that prevents body heat transfer from interfering with readings, as well as an oversized check valve for smooth operation. The dual o-rings on all pistons ensure zero leakage. MP-P and MP-V have been in service for over a decade and can now be found in over two thirds of all power plants. Both models will out perform any manufactured pump in it's category.

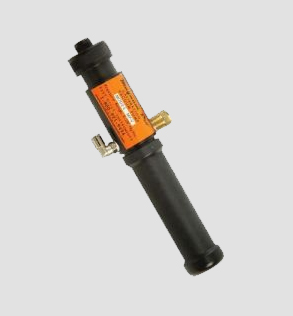

MP-V Vacuum Calibration Pump
Features a Delrin® plastic handle that prevents body heat transfer from interfering with readings, as well as an oversized check valve for smooth operation. The dual o-rings on all pistons ensure zero leakage. MP-P and MP-V have been in service for over a decade and can now be found in over two thirds of all power plants. Both models will out perform any manufactured pump in it's category.

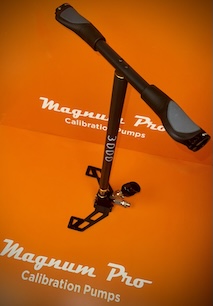

PP-4 Magnum Pro Pneumatic Power Pump
Fluids in a transmitter or delicate system have always been a concern. East Hills Instruments introduces the only fully versatile pneumatic pump capable of generating pressure up to 4,000 psi without liquid. Two support legs fold out to stabilize the PP4 and the pump can be operated by either foot or hand. The fine vernier control allows the pressure to be finely adjusted and sealed off to prevent slow leaks.
High Pressure Dirt/Moisture Trap
Liquid trap with male Quick-test top port, female Quick-test bottom port. Eliminates unwanted fluid or moisture that can contaminate any gas system.
Magnum Pro Calibration Hoses
Magnum Pro high pressure calibration hoses are flexible but will not stretch.
M-Series Analog Gauge
The M-Series Analog Gauge comes in a variety of display sizes and ranges to suit our exact needs. The protective rubber boot will ensure it the best protection from the rugged life inside the power plant.
